BRAZIL · SNACK & CONFECTIONERY

Customized Chocolate Coating Line for Rice Cakes in Brazil

A customized Model 600 chocolate coating line supplied for rice cakes in Brazil. The line combines chocolate coating, nut sprinkling, product flipping and cooling in a layout approximately 9.8 m long.

Request a SolutionContact Us
Customized chocolate coating line for rice cakes
Customized chocolate coating line for rice cakes

Project Snapshot

Customer locationBrazil
ProductChocolate-coated rice cakes
Product sizeApprox. 90 mm diameter / 7 g each
Project typeCustomized chocolate coating line
Selected modelModel 600 coating line
Power supply380 V / 60 Hz / 3-phase
Available spaceMaximum 11 m; final line approx. 9.8 m
Material304 stainless steel
StatusIn Operation
ShipmentJuly 2026

Customer Requirement

The customer needed a chocolate coating line for rice cakes approximately 90 mm in diameter and 7 g each. The line had to include nut sprinkling, product flipping and cooling within an available space of 11 m.

Our Solution

YANNENG supplied a customized Model 600 coating line with a 200 L chocolate melting tank, 2 m infeed conveyor, nut-sprinkling system and recovery hopper, product-flipping mechanism and 6 m cooling tunnel. The equipment layout measures approximately 9.8 m to fit the customer’s available space.

  1. 1200 L chocolate melting tank
  2. 2Model 600 chocolate coating line
  3. 36 m cooling tunnel
  4. 4Sprinkling machine with recovery hopper
  5. 52 m infeed conveyor
  6. 6Product flipping mechanism after coating

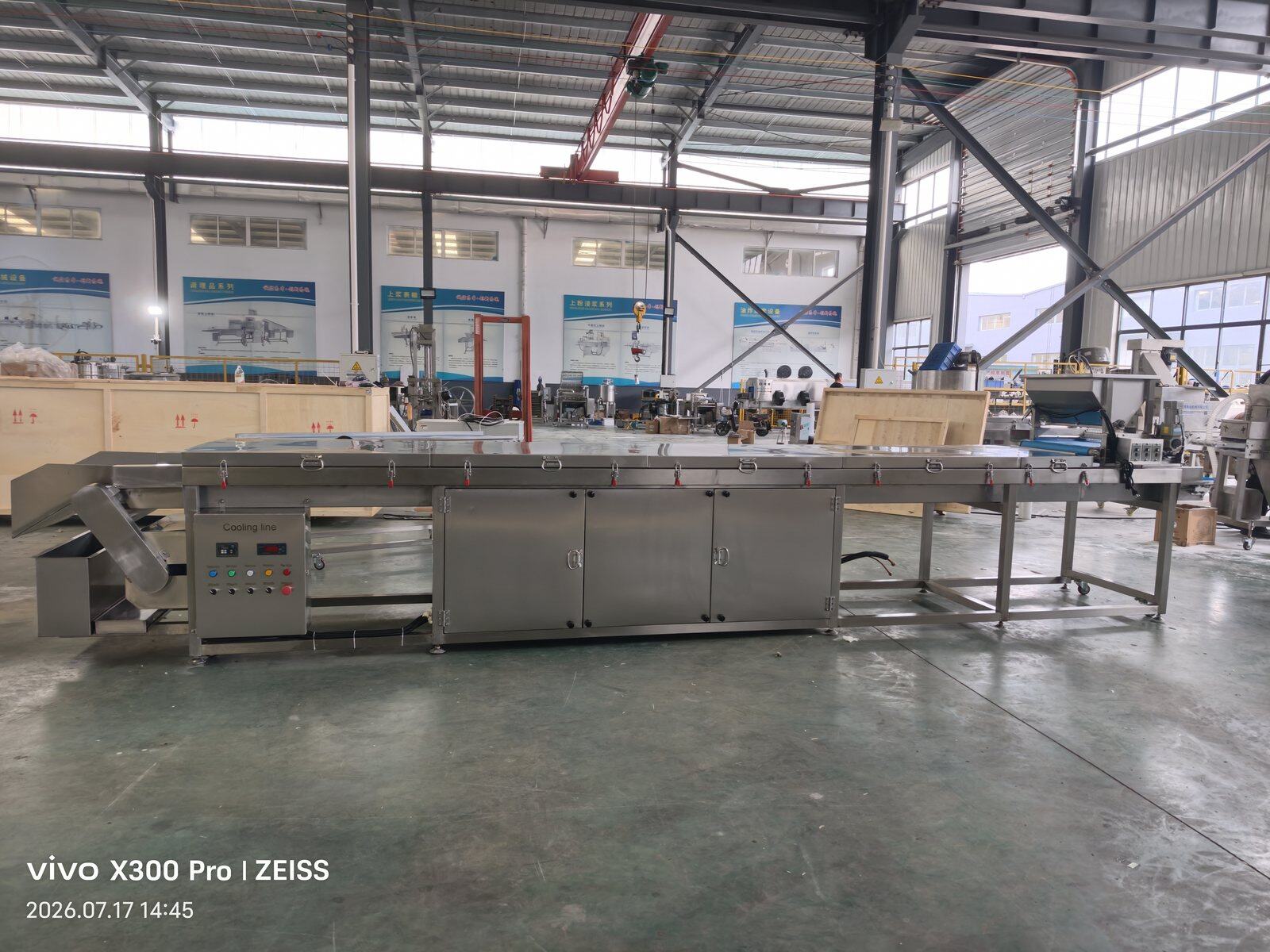

Overall view of the chocolate coating production line
Overall view of the coating and cooling line

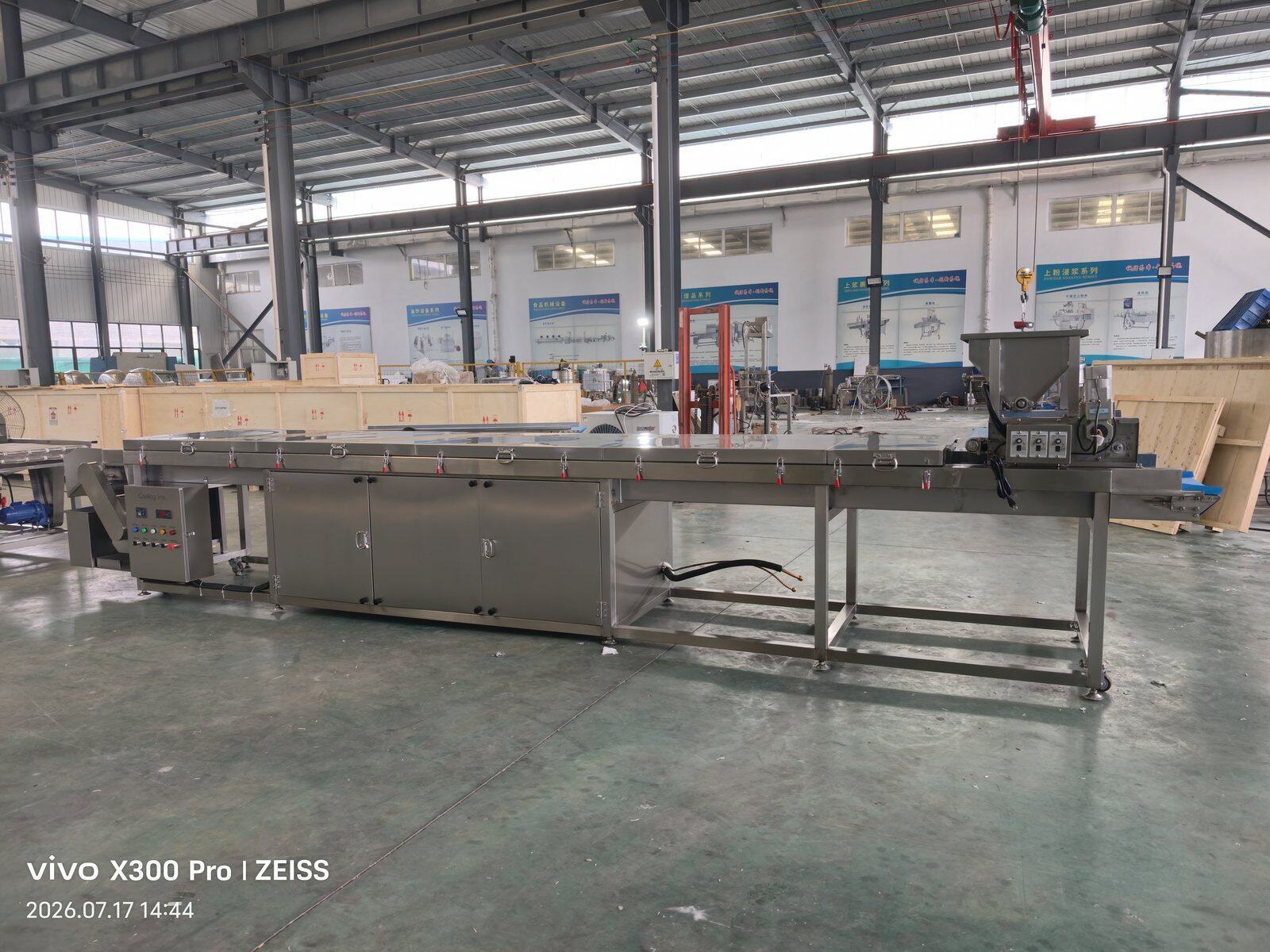

Connected equipment in the chocolate coating line
Connected coating line equipment in the workshop

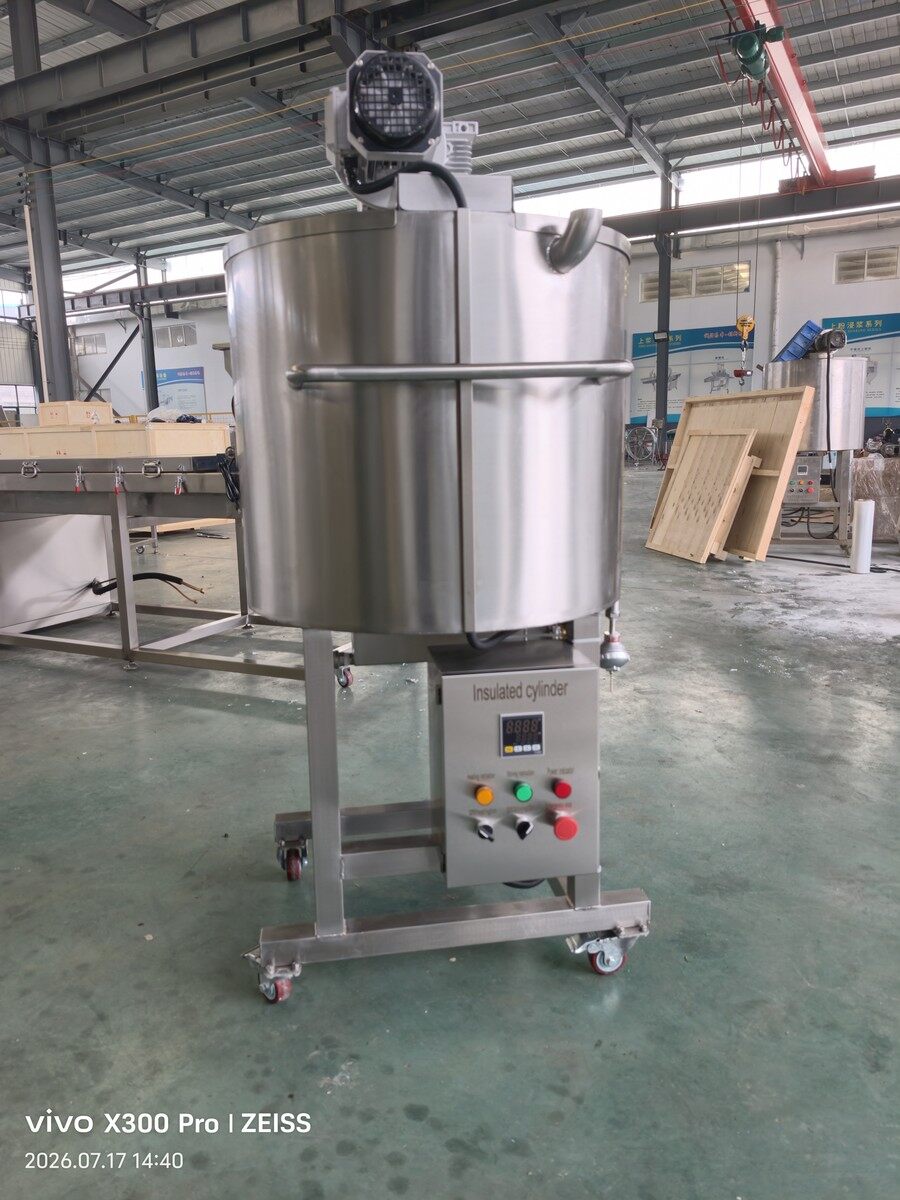

200 L chocolate melting tank
Chocolate melting tank used with the line

Control, Conveyor & Shipment Preparation

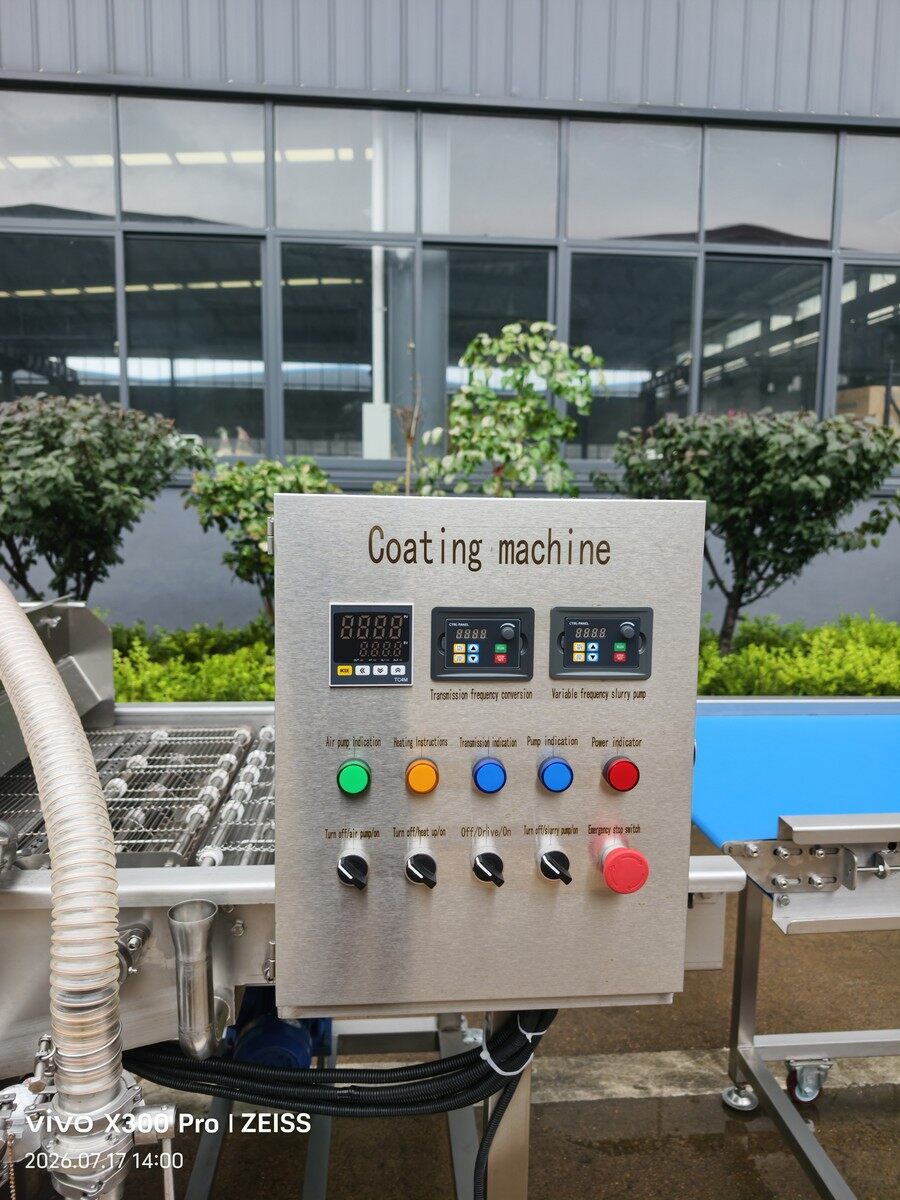

Control panel and operating section of the chocolate coating line
Control section of the coating equipment

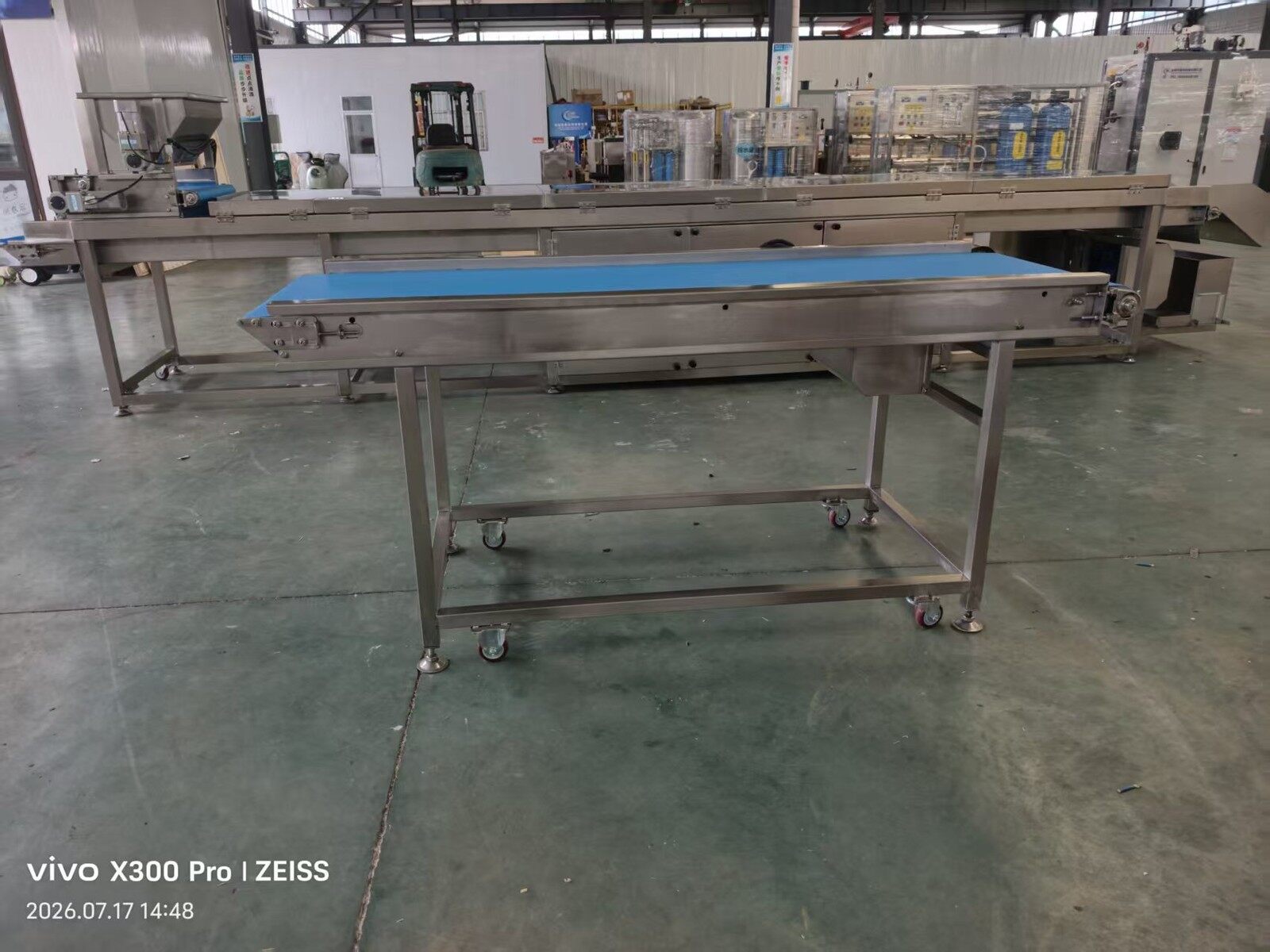

Infeed conveyor section for the chocolate coating line
Conveyor section used for product feeding

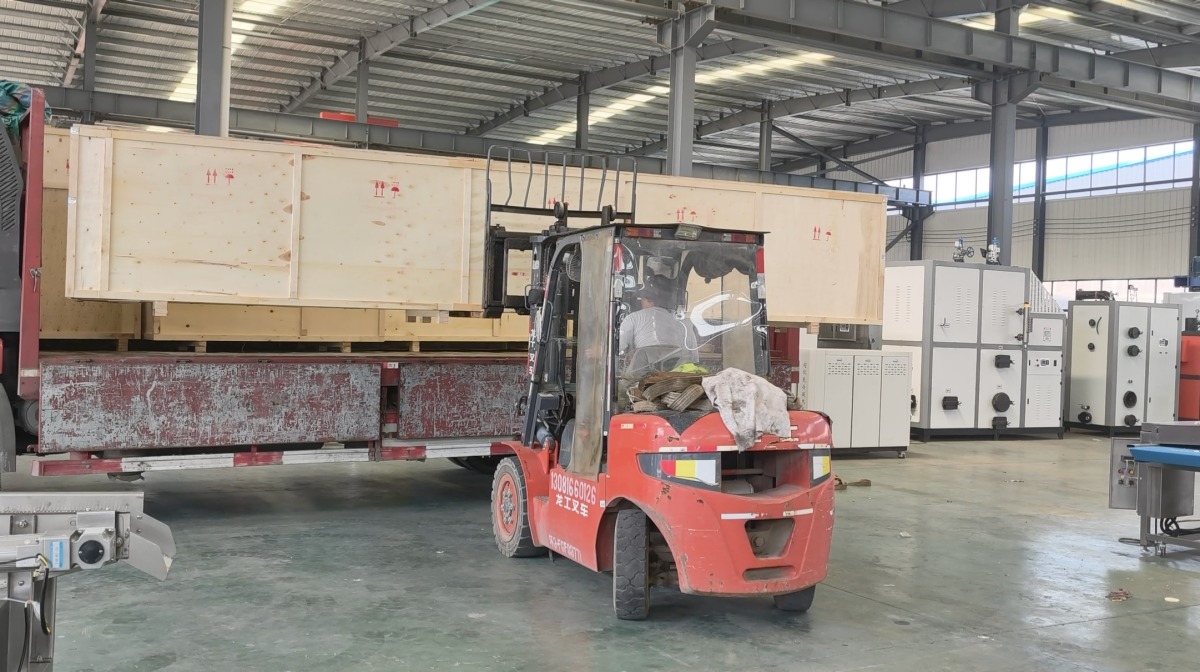

Wooden-case equipment loading before shipment
Wooden-case equipment loading before shipment

Customization Highlights

  • Product-matched coating for approx. 90 mm / 7 g rice cakes.
  • Nut sprinkling and recovery arrangement.
  • Product flipping mechanism.
  • Approx. 9.8 m layout within the 11 m space limit.

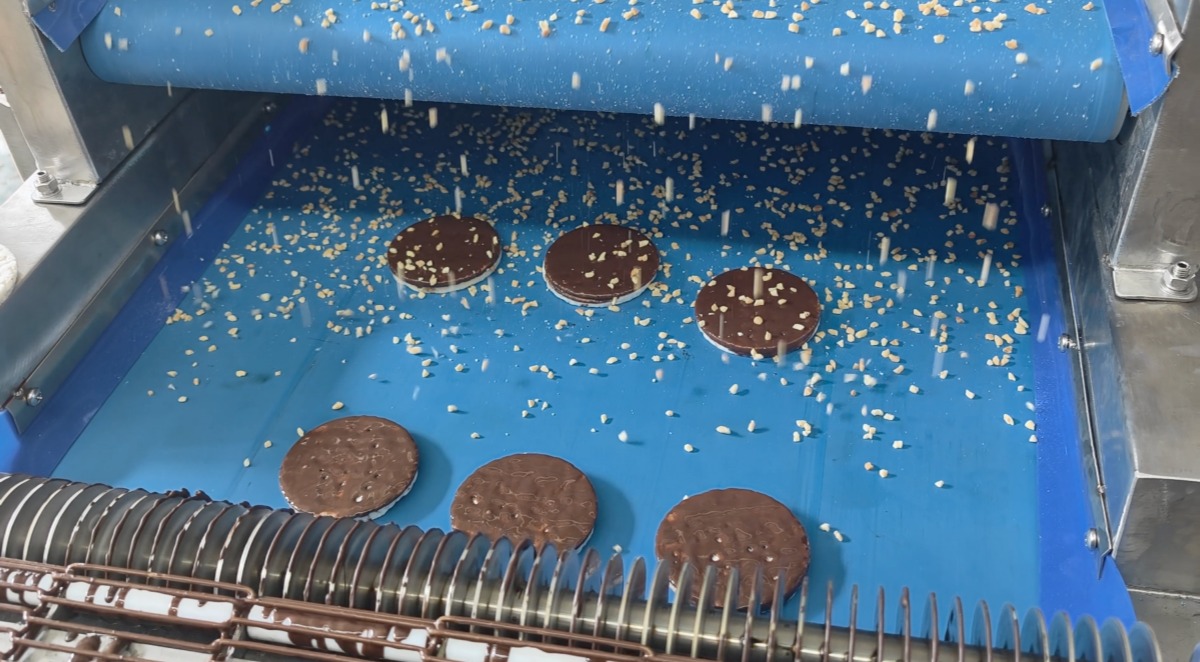

Factory test of chocolate-coated rice cakes during nut sprinkling
Factory test of chocolate-coated rice cakes during nut sprinkling

Testing, Delivery & Current Status

The customized chocolate coating line was factory-tested and shipped to Brazil in July 2026. The customer has since put the equipment into production. Factory testing included chocolate coating and nut sprinkling on rice cakes.
